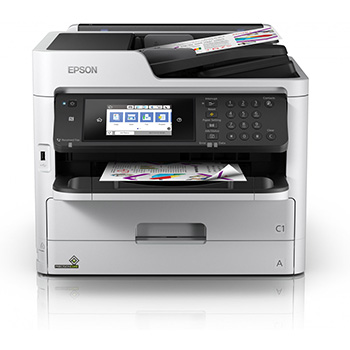

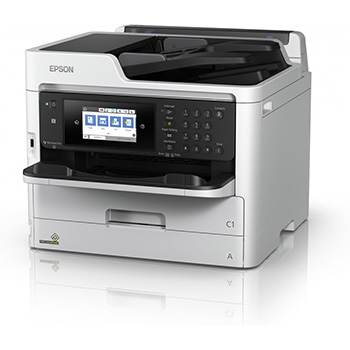

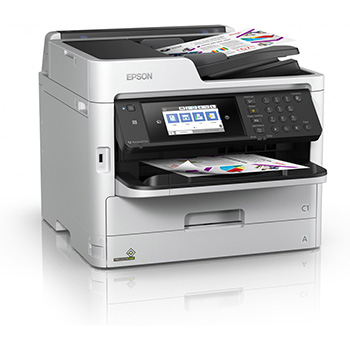

Epson WorkForce Pro WF-C5790DWF Series Specifications
Technology
Nozzle Configuration
800 Nozzles Black, 800 Nozzles per Color
Droplet Size
3.8 pl, With Variable-Sized Droplet Technology
Functions
Print, Copy, Scan, Fax
Print
Print speed
34 pages/min Monochrome (plain paper 75 g/m²), 34 pages/min Colour (plain paper 75 g/m²)
Time to first print (TTFP)
Monochrome 6 Seconds, Colour 6 Seconds
Resolution
4800 x 1200 dpi
Colours
Magenta, Yellow, Cyan, Black
Scan
Single-sided scan speed (A4 black)
24 ipm with ADF scan 200 dpi (flatbed) 4 sec. with flatbed scan
Single-sided scan speed (A4 colour)
24 ipm with ADF scan 200 dpi (flatbed) 4 sec. with flatbed scan
Scanning Resolution
1,200 DPI x 2,400 DPI (Horizontal x Vertical)
Optical Resolution (ADF)
1,200 DPI (Horizontal x Vertical)
Output formats
JPEG, TIFF, PDF
Scanner type
Contact image sensor (CIS)
Copy
Copy Speed
Up to 22 ipm Colour, Up to 22 ipm Black
*Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
Copy resolution (dpi)
600 x 1200
Reduction / Enlargement
25 % - 400 % Auto fit function
Maximum Copy Size
A4
Fax
Fax Transmission Speed
Up to 33.6kbps / Approx. 3 sec/page
Fax speed dials (max)
200 names and numbers
Fax Functions
PC Fax, Fax to E-mail, Memory Reception, Auto Redial, Speed Dial
Paper Handling (MFP)
Paper sizes
C4 (Envelope), Legal, A6, A5, B5, Letter, 9 x 13 cm, 10 x 15 cm, 13 x 18 cm, A4, B6, C5 (Envelope), No. 10 (Envelope), User defined, C6 (Envelope), DL (Envelope)
Compatible Paper Weight
64 g/m2 - 256 g/m2
Duplex
Automatic
Standard Paper input
80-Sheet Multi-Purpose Tray, 250-sheet paper tray
Connectivity
Interfaces
USB, Network & Wireless
Airprint Compatible
Yes
General
Product dimensions
425mm(W) x 535mm(D) x 357mm(H)
Product weight
18.4 kg
Compatible Operating Systems
Windows & Mac
Mobile and Cloud printing services
NFC, Apple AirPrint, Google Cloud Print and Epson Connect suite of mobility apps
What's in the box
Driver and utilities (CD),4 T902 Initial Ink Packs: Black/Cyan/Magenta/Yellow, Power cable, Setup guide, User manual (CD)
Pro WF-C5790DWF Series Technical Spec Sheet
