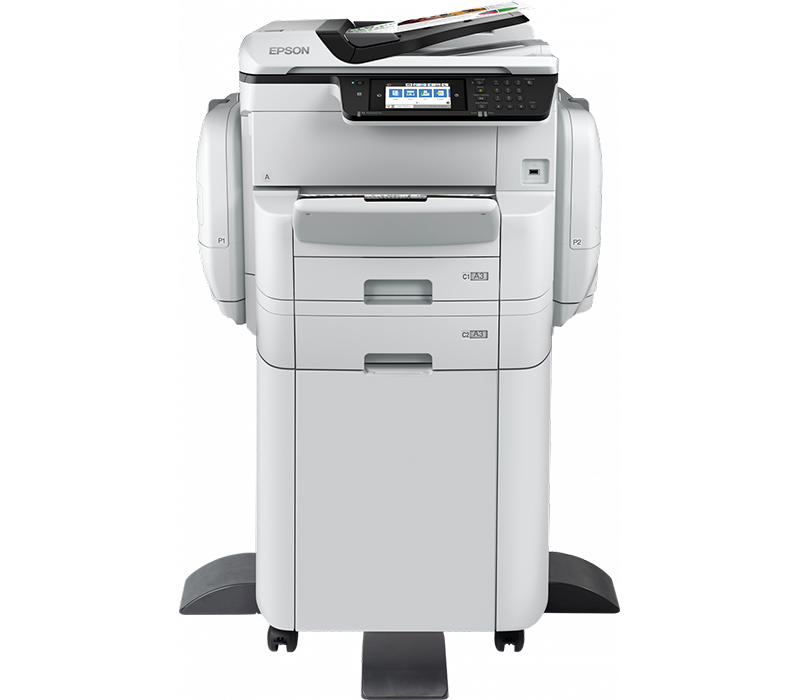

Epson WorkForce Pro WF-C869RDTWF Series Specifications
Technology
Printing Method
PrecisionCore™ Print Head
Nozzle Configuration
800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size
4.6 pl, With Variable-Sized Droplet Technology
Ink Technology
Replaceable Ink Pack System (RIPS)
Functions
Print, Copy, Scan, Fax
Print
Print speed ISO/IEC 24734
24 pages/min Monochrome, 24 pages/min Colour
Print speed
35 pages/min Monochrome (plain paper 75 g/m²), 35 pages/min Colour (plain paper 75 g/m²)
Time to first print (TTFP)
Monochrome 6 Seconds, Colour 6 Seconds
Resolution
4800 x 1200 dpi
Colours
Magenta, Yellow, Cyan, Black
Scan
Single-sided scan speed (A4 black)
200 dpi (with ADF); , 25 ipm with ADF scan 200 dpi (flatbed) 4 sec. with flatbed scan
Single-sided scan speed (A4 colour)
25 ipm with ADF scan 200 dpi (flatbed) 4 sec. with flatbed scan; 200 dpi (with ADF)
Scanning Resolution
1,200 DPI x 2,400 DPI (Horizontal x Vertical)
Optical Resolution (ADF)
1,200 DPI x 2,400 DPI (Horizontal x Vertical)
Output formats
JPEG, TIFF, PDF
Scanner type
Contact image sensor (CIS)
Copy
Copy Speed
Up to 21 ipm Colour, Up to 22 ipm Black
*Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
Copy resolution (dpi)
600 x 1200
Reduction / Enlargement
25 % - 400 % Auto fit function
Maximum number of copies
999
Maximum Copy Size
A3
Fax
Type of fax
Walk-up black and white and colour fax capability
Fax Transmission Speed
Up to 33.6kbps / Approx. 3 sec/page
Error correction mode
CCITU/ITU Group3 fax with Error Correction Mode
Fax speed dials (max)
200 names and numbers
Page memory
Up to 550 pages/ 6MB (ITU-T No. 1 chart)
Fax Functions
PC Fax, Fax to E-mail, Memory Reception, Auto Redial, Speed Dial
Paper Handling (MFP)
Paper sizes
A3+, A3, A4, A5, A6, B4, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 20 x 25 cm, HLT, EXE, Legal, Tabloid
Compatible Paper Weight
64 g/m2 - 300 g/m2
Duplex
Automatic
Standard Paper input
85-Sheet Multi-Purpose Tray, 250-sheet paper tray, 500-Sheet paper tray
Output Tray Capacity
250 Sheets
Paper Tray Capacity
580 Sheets Standard, 580 Sheets Maximum
Connectivity
Network Printing Protocols
LPR, FTP, IPP, Port 9100, WSD, Net BIOS over TCP/IP, IPPS, PTP over IP, DPS over IP, IS, Bonjour/Airprint
Network Management Protocols
LPR, FTP, IPP, Port 9100, WSD, Net BIOS over TCP/IP, IPPS, PTP over IP, DPS over IP, IS, Bonjour/Airprint
Interfaces
Wi-Fi Direct, USB host, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Hi-Speed USB - compatible with USB 2.0 specification, Wireless LAN IEEE 802.11a/b/g/n, USB 2.0 Type A (2x), USB 3.0 Type B
WLAN Security
WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES), WPA2 Enterprise (AES)
General
Energy Use
TEC 0.3 kWh/week, 40 Watt (standalone copying, ISO/IEC 24712 pattern), 1.6 Watt (sleep mode), 20 Watt (ready), 0.5 Watt (Power off), ENERGY STAR qualified
Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
787 x 758 x 621 mm (Width x Depth x Height)
Product weight
64.1 kg
Compatible Operating Systems
Citrix XenApp 7.x, Linux, Mac OS 10.10.x, Mac OS 10.11, Mac OS 10.6+, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Microsoft Windows Vista (32/64 bit), Microsoft Windows XP (Home Edition / Prof / Prof X64 / Vista), SAP, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP x64, Windows server 2003 R2
Sound Power
Operation: 6.4 B (A)
Sound Pressure
Operation: 48 dB (A)
Mobile and Cloud printing services
Epson Connect (iPrint, Email Print, Remote Print Driver, Scan-to-Cloud), Apple AirPrint, Google Cloud Print
Power Supply
100V, 110V, 220V, 240V
What's in the box
Initialization Ink Supply Units, Main unit, Paper tray, Power cable, Quick Setup Guide, User manual (CD), Warranty Documents
Security Functions
Limit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode
Emulations
PDF 1.7, ESC/P-R, PCL5e, PCL5c, PCL6, PostScript 3
Pro WF-C869RDTWF Series Technical Spec Sheet
